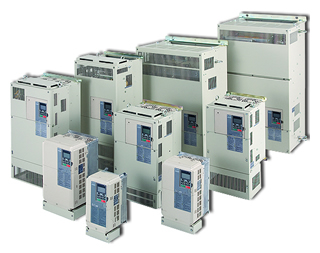

Yaskawa A1000 Series Frequency Drives
A1000 Drives
3/4 - 1000 Horsepower - A Single Drive For All Your Needs With Outstanding Performance
The A1000 drive from Yaskawa america is the industrial POWER HOUSE. This robust controller provides the best performance and flexibility for simple fans and pumps to complex machines. Up to 1000HP @ 480vAC and the best mean time before failure on the VFD market. If you want a machine that does the job and actually lasts. The A1000 is the only choice.
Drive Model Number |
Normal Duty (ND)1 |
Heavy Duty (HD)1 |
Standard Enclosure |
|||
Rated Output Current (Amps) |
Nominal HP2 |
Rated Output Current (Amps) |
Nominal HP2 |
|||
200 to 240V, 3-Phase |
3.5 |
1/2 & 3/4 |
3.2 |
1/2 & 3/4 |
NEMA 1 |
|
6 |
1 |
5 |
3/4 & 1 |
|||
8 |
2 |
6.9 |
2 |
|||
200 to 240V, 3-Phase |
9.6 |
2 & 3 |
8 |
2 |
NEMA 1 |
|
12 |
3 |
11 |
3 |
|||
17.5 |
5 |
14 |
3 |
|||
200 to 240V, 3-Phase |
21 |
7.5 |
17.5 |
5 |
NEMA 1 |
|
30 |
7.5 & 10 |
25 |
7.5 |
|||
40 |
15 |
33 |
10 |
|||
200 to 240V, 3-Phase |
56 |
20 |
47 |
15 |
NEMA 1 |
|
69 |
25 |
60 |
20 |
|||
81 |
30 |
75 |
25 |
|||
200 to 240V, 3-Phase |
110 |
40 |
85 |
30 |
NEMA 1 |
|
138 |
50 |
115 |
40 |
|||
169 |
60 |
145 |
50 |
|||
200 to 240V, 3-Phase |
211 |
75 |
180 |
60 |
Protected Chassis |
|
250 |
100 |
215 |
75 |
|||
312 |
125 |
283 |
100 |
|||
200 to 240V, 3-Phase |
360 |
150 |
346 |
125 |
Protected Chassis |
|
415 |
175 |
415 |
150 |
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
Drive Model Number |
Normal Duty (ND)1 |
Heavy Duty (HD)1 |
Standard Enclosure |
|||
Rated Output Current (Amps) |
Nominal HP2 |
Rated Output Current (Amps) |
Nominal HP2 |
|||
380 - 480V, 3-Phase |
2.1 |
3/4 & 1 |
1.8 |
3/4 |
NEMA 1 |
|
4.1 |
2 |
3.4 |
1 & 2 |
|||
5.4 |
3 |
4.8 |
3 |
|||
380 - 480V, 3-Phase |
6.9 |
4 |
5.5 |
3 |
NEMA 1 |
|
8.8 |
5 |
7.2 |
4 |
|||
11.1 |
7.5 |
9.2 |
5 |
|||
380 - 480V, 3-Phase |
17.5 |
10 |
14.8 |
7.5 & 10 |
NEMA 1 |
|
23 |
15 |
18 |
10 |
|||
31 |
20 |
24 |
15 |
|||
380 - 480V, 3-Phase |
38 |
25 |
31 |
20 |
NEMA 1 |
|
44 |
30 |
39 |
25 & 30 |
|||
58 |
40 |
45 |
30 |
|||
380 - 480V, 3-Phase |
72 |
50 |
60 |
40 |
NEMA 1 |
|
88 |
60 |
75 |
50 & 60 |
|||
103 |
75 |
91 |
60 |
|||
380 - 480V, 3-Phase |
139 |
100 |
112 |
75 |
NEMA 1 |
|
165 |
125 |
150 |
100 |
|||
380 - 480V, 3-Phase |
208 |
150 |
180 |
125 & 150 |
Protected Chassis |
|
250 |
200 |
216 |
150 |
|||
296 |
250 |
260 |
200 |
|||
380 - 480V, 3-Phase |
362 |
300 |
304 |
250 |
Protected Chassis |
|
414 |
350 |
370 |
300 |
|||
380 - 480V, 3-Phase |
515 |
400 & 450 |
450 |
350 |
Protected Chassis |
|
380 - 480V, 3-Phase |
675 |
500 - 600 |
605 |
400 - 500 |
||
380 - 480V, 3-Phase |
930 |
700 - 800 |
810 |
600 - 700 |
Protected Chassis |
|
380 - 480V, 3-Phase |
1200 |
900 - 1000 |
1090 |
800 - 900 |
- Normal Duty overload current rating is 120% of rated output current for 60 seconds; Heavy Duty overload current rating is 150% of rated output current for 60 seconds
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430. 150 Full-Load Current, Three-Phase Alternating Current Motors
Drive Model Number |
Normal Duty (ND)1 |
Heavy Duty (HD)1 |
Standard Enclosure |
|||
Rated Output Current (Amps) |
Nominal HP2 |
Rated Output Current (Amps) |
Nominal HP2 |
|||
500 to 600V, 3-Phase |
2.7 |
1 & 2 |
1.7 |
1 |
NEMA 1 |
|
3.9 |
3 |
3.5 |
2 |
|||
6.1 |
5 |
4.1 |
3 |
|||
500 to 600V, 3-Phase |
9 |
7.5 |
6.3 |
5 |
NEMA 1 |
|
11 |
10 |
9.8 |
7.5 |
|||
17.5 |
15 |
12.5 |
10 |
|||
500 to 600V, 3-Phase |
22 |
20 |
17 |
15 |
NEMA 1 |
|
27 |
25 |
22 |
20 |
|||
32 |
30 |
27 |
25 |
|||
500 to 600V, 3-Phase |
41 |
40 |
32 |
25 & 30 |
NEMA 1 |
|
52 |
50 |
41 |
40 |
|||
62 |
60 |
52 |
50 |
|||
500 to 600V, 3-Phase |
77 |
75 |
62 |
60 |
NEMA 1 |
|
99 |
100 |
77 |
75 |
|||
500 to 600V, 3-Phase |
125 |
125 |
99 |
100 |
Protected Chassis |
|
145 |
150 |
130 |
125 |
|||
500 to 600V, 3-Phase |
192 |
200 |
172 |
150 |
Protected Chassis |
|
242 |
250 |
200 |
200 |
